Pixel-level RGB control for dynamic chases & patterns
5° ultra-narrow lens – powerful long-throw beams
3–121 DMX channels – extreme programming flexibility
150W output with 36x3W high-brightness SMD LEDs
DMX512, sound, auto & master-slave modes
Compact 100cm length, easy transport & rigging
Optional flight case for 10 units – tour-ready
Why Choose This Light?
Pixel-level precision – create intricate patterns, text, or chasing effects
Versatile effects – works as a wash light, beam light, or strobe curtain
Easy setup – plug-and-play with multiple control options
Great value – high power output at a competitive price
Best for: Nightclubs, bars, DJ booths, stage backdrops, live performances, TV studios, and event trusses.
Product advantages

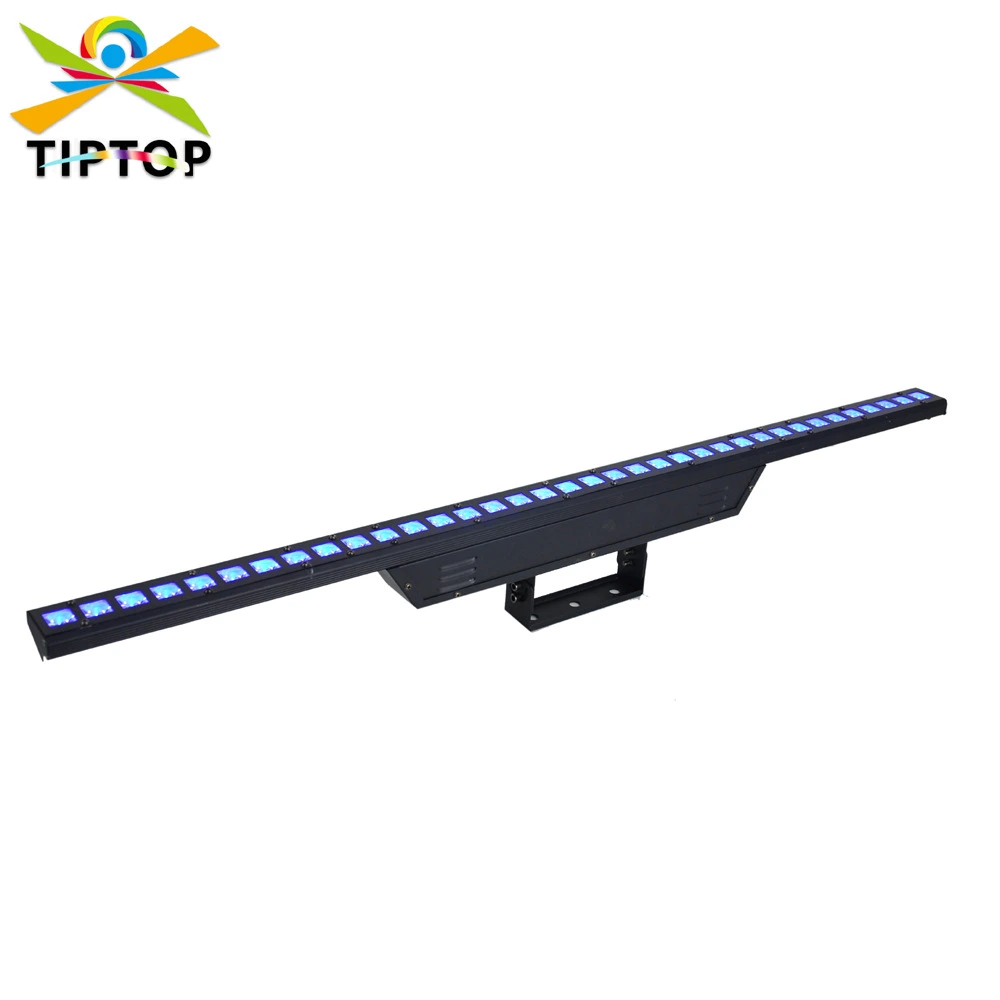

This 150W LED bar features pixel-level RGB control with 36x3W SMD LEDs and a 5° ultra-narrow lens for long-throw beams. It supports 3–121 DMX channels, sound, auto, and master-slave modes. Compact 100cm length with optional 10-unit flight case – ideal for touring and indoor events.
High brightness RGB 36pcs 3W Led
Multiple DMX channel modes (up to 121ch)
Individual pixel control,DMX
CE & ROHS certified, 1-year warranty
IP20 rating ideal for concerts, TV studios, nightclubs, theaters, and event halls
Personalities
DMX Channel: 3ch/4ch/6ch/8ch/7ch/12ch/13ch/24/25ch/60ch/61ch/120ch/121ch
Protocols: DMX
Connectors: Locking 3 pin XLR IN/ OUT
Power connector: Powercon in/out
Colors
RGB color mixing system, 16.7 million kinds of color change
Effect macros
Color change, color strobe, color dimmer, color gradual change/color jump change
Dimmer/Strobe
Linear Dimmer: 16 bit 0%-100% linear dimmer
Strobe: 1 – 30Hz
LED display screen
DMX512/Auto/Master Slave/Sound
Power and DMX in/out for daisy-chaining
Housing
Aluminum die casting
Working environment: Indoor
Electrical
Optical voltage: Ac100-240v,50/60 hz
Max power consumption: 150watt
Packaging
Carton box + foam shell
Flight case
Weight - size
Net weight:13.23lbs(6Kg)
Size: 39.37" x3.54" x 5.91" (l100x w9 x h15)
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGB |
|
Power |
36pcs x3W 3535 SMD |
|
LED life expectancy |
60,000-100,000 hrs |
|
Photometric data |
|
|
Led Range |
25° |
Product details
