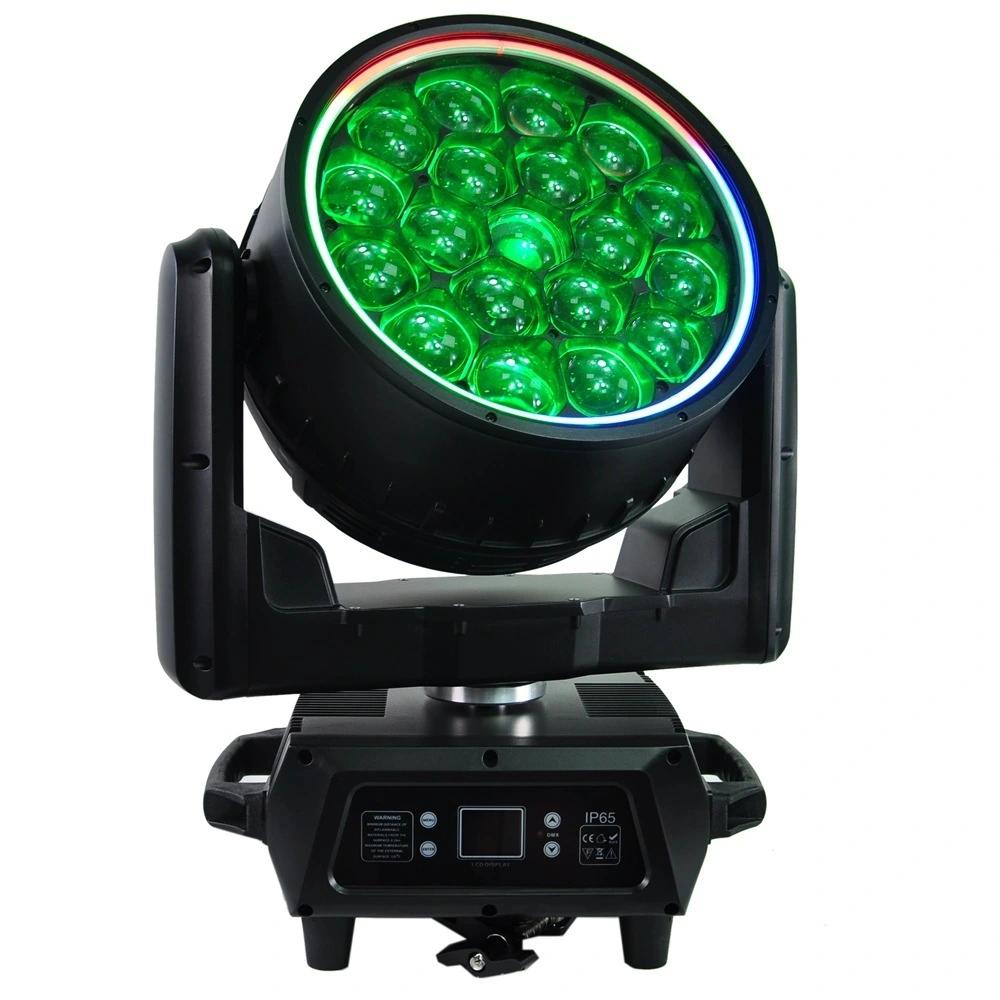

TP-L1940W is a high-performance lighting fixture that brings your stage productions to life. It features 19 individual 40-watt LEDs. This high count allows for intense brightness and the ability to mix a vast range of colors.
This signifies a very bright light, suitable for medium to large venues.
TP-L1940W has a crucial feature,the fixture has an Ingress Protection (IP) rating 65, which makes it resistant to dust and water jets. This allows it to be used outdoors in the rain or in environments with high moisture.
Personalities
DMX Channel: 21/35/78/92/97/43CH
Protocols: DMX
Connectors: Locking 3 pin/5 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBW color mixing system
Effect macros
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity RGB 3IN1 LED halo ring with rainbow effect
With"vortex"and "kaleidoscope" effects
Variable built-in dynamic effects
Each Led lamps can be controlled individual
Movement
Pan scan:540°(16bit) Electric correction
Tilt scan:216° (16bit) Electric correction
Dimmer/Strobe
Liner Dimmer: 4 Liner dimming curves
Strobe: 1 – 25Hz
LCD display screen
DMX512/Auto/RDM/Master Slave
Safety
Intelligent cooling system with overheating protection and speed adjustable fans
Housing
Aluminum die casting with fire-proof housing
Two side handles for transportation
IP65 protection rate
Working in any position
Optional folding clamp for easy installation
Electrical
Optical voltage: AC100-240V,50/60 Hz
MAX power consumption: 850Watt
Packaging
Carton box + Foam shell
Flight case + Foam shell
Weight - size
Net Weight: 22 Kg(48.5lbs)
Size: 17.72" x77.16" x 108.03" (L x W x H)
Product display
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBW LEDs |
|
Power |
19x40W(Osram lamp) |
|
Color Temperature |
2500K-10000K |
|
LED life expectancy |
50,000 hrs |
|
*It may vary depending on various factors, such as the type of use and environment |
|
|
Photometric data |
|
|
Zoom Range |
4°-45° |
|
PMMA Lens with glass lighting pipe |
|
Product details
