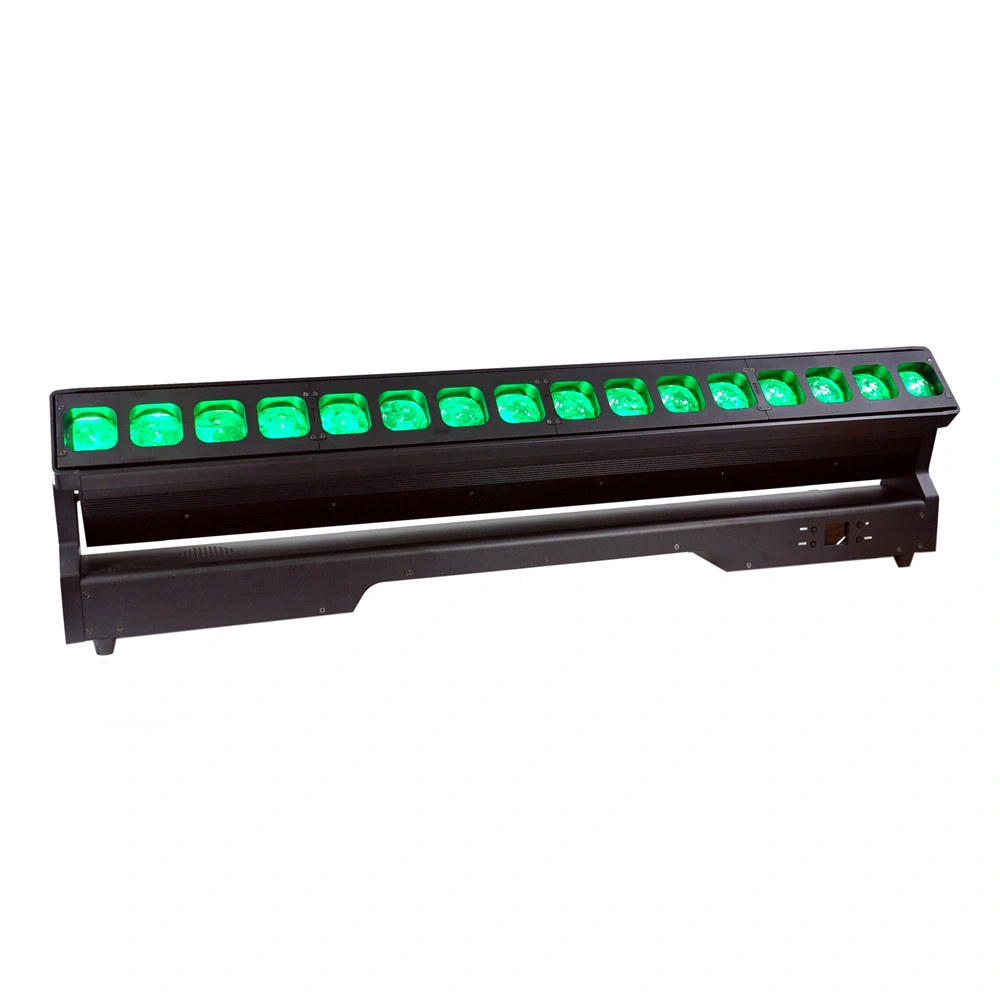

The 16X40w led bar beam moving head is a cutting-edge lighting fixture designed for professional stage, show, nightclub, DJ, and wedding applications. The zoom range of 4.5°- 55° provides flexibility in beam angles, allowing for precise control over the spread of light. The presence of two independent zoom zones further enhances creative possibilities.
With its advanced features and high-quality performance, it delivers stunning lighting effects and enhances the overall ambiance of any event or venue. This moving head bar light is suitable for various venues, including stages, shows, nightclubs, DJs, and weddings, making it a versatile choice for professional lighting setups.
Personalities
DMX Channel: 16CH/18CH/78CH
Protocols: DMX
Connectors: Locking 3 pin/5 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBW color mixing system
Effect macros
Beam/Zoom function
Each Led lamps can be controlled individual
Movement
Tilt scan: 220° (16bit) Electric correction
Dimmer/Strobe
Liner Dimmer: 0-100% linear dimmer
Strobe: 1 – 20Hz
LCD display screen
DMX512/Auto/Master Slave
Safety
Intelligent cooling system with overheating protection
Housing
Aluminum die casting
Working environment: indoor
Electrical
Optical voltage: AC100-240V,50/60 Hz
MAX power consumption: 580Watt
Packaging
Carton box + Foam shell
Flight case + Foam shell
Weight - size
Net Weight: 15 Kg(33.07lbs)
Size: 40.16" x4.33" x 11.47" (L x W x H)
Product display
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBW LEDs |
|
Power |
16x40W |
|
Color Temperature |
2800K-8500K |
|
LED life expectancy |
50,000 hrs |
|
*It may vary depending on various factors, such as the type of use and environment |
|
|
Photometric data |
|
|
Zoom Range |
4.5°-55° |
|
Lens angle |
1.7° |
Product details
