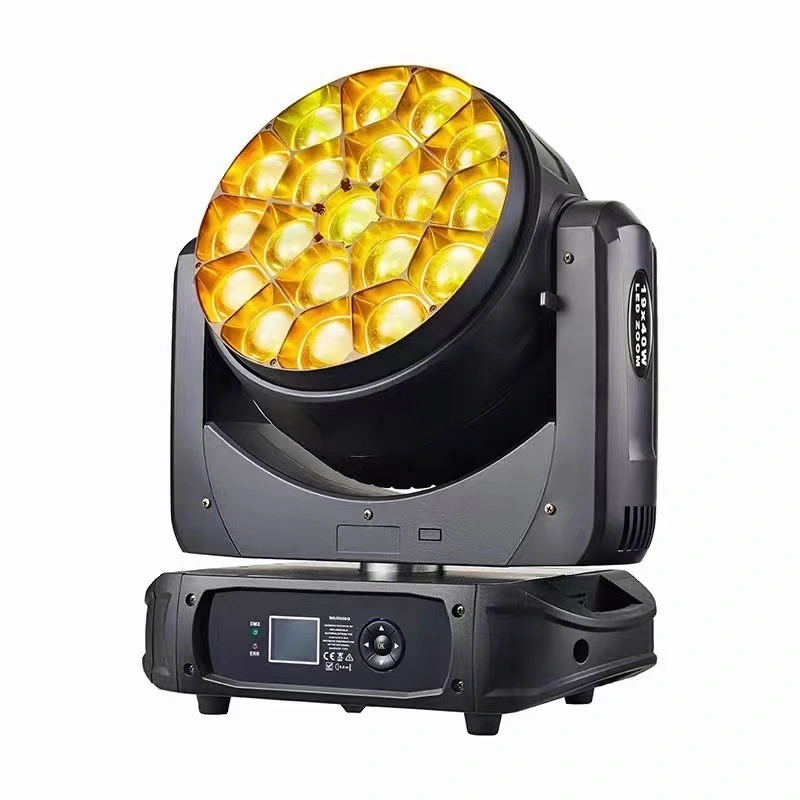

The 19x40W LED Moving Head is a high-performance lighting fixture that brings your stage productions to life. It features 19 powerful RGBW 4-in-1 LEDs with a wattage of 40W each, delivering impressive brightness and stunning color mixing capabilities. This fixture is designed to create dynamic and captivating lighting effects, enhancing the overall visual experience for your audience.
Supports 1:1 claypaky channel + button, making operation more convenient, with customization of ArtNet, sACN and KlingNet network protocols and other functions.
Personalities
DMX Channel: 21/23/35/78/92/100/102CH
Protocols: DMX
Connectors: Locking 3 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBW color mixing system
Effect macros
With CTO, wash, beam effect(vortex, kaleidoscope), the front mirror plate can be variably rotated, seamlessly spliced, aspherical lens structure, each led lamp can be controlled separately.
Movement
Pan scan:540°(16bit) Electric correction
Tilt scan:270° (16bit) Electric correction
Dimmer/Strobe
Liner Dimmer: 0 - 100 %
Strobe: 1 – 25Hz
LCD display screen
Housing
Aluminium covers
Two side handles for transportation
IP20 protection rate
Working in any position
Electrical
Optical voltage: AC100-240V,50/60 Hz
MAX power consumption: 760Watt
Packaging
Carton box + Foam shell
Flight case + Foam shell
Weight - size
Net Weight: 17 Kg(37.48lbs)
Size: 16.34" x10.8" x 16.73" (L x W x H)
Product display
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBW LEDs |
|
Power |
19x40W |
|
Color Temperature |
2800K-8500K |
|
LED life expectancy |
50,000 hrs |
|
*It may vary depending on various factors, such as the type of use and environment |
|
|
Photometric data |
|
|
Zoom Range |
4°-60° |
