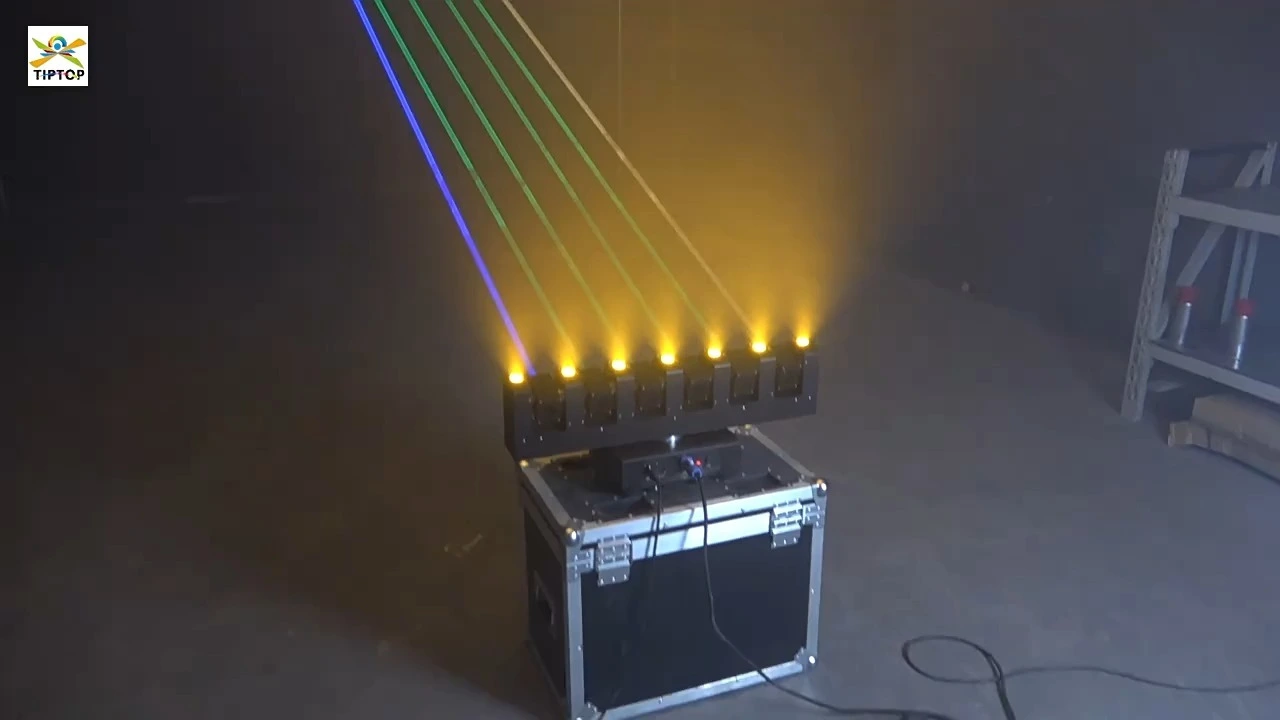

6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control

This professional laser moving head integrates high-precision RGB laser diodes with warm white LED arrays to create a versatile hybrid lighting solution. Its core design enables vibrant full-color laser graphics combined with warm wash effects, all within a rugged, IP56-rated housing suitable for energetic environments.
  • Hybrid Optical System: Combines six independent full-color RGB laser heads (each 500mW, total 2.5W) with seven 5W warm white LEDs, enabling simultaneous laser beams and柔和暖光 wash or accent lighting.

  • Precision Laser Specifications: Utilizes high-purity semiconductor lasers with specific wavelengths – Red 638nm (180mW), Green 525nm (80mW), Blue 450nm (250mW) – for vivid and balanced color output with analog (TTL) modulation capability.

  • Advanced Control & Flexibility: Offers comprehensive control via DMX512 (selectable 12, 24, or 40 channels), alongside standalone Sound-Activated, Automatic, Master/Slave, and Self-Running modes for adaptable operation in any setup.

  • High-Speed Scanning System: Equipped with precise stepper motor scanners providing wide Y-axis movement (240°) and X-axis adjustment (135°), plus fine-tuning capabilities (0-255°), for creating dynamic laser patterns and aerial effects.

  • Professional Durability: Built with a fan-cooled system, IP56 smoke and dust resistance, and a robust design rated for 10,000 hours of operation in a wide temperature range (-20°C to 50°C), ensuring reliability in active venues.

Ideal Application Scenarios:
This hybrid laser/LED moving head is ideal for creating immersive visual experiences in various indoor entertainment and performance settings, including:

  • Large Nightclubs, High-Energy Bars, and Live Music Venues

  • Concert Tours, Festival Stages, and Theatrical Productions

  • KTV Lounges, Entertainment Complexes, and Event Halls

  • Fixed Installations Requiring Robust, Multi-Effect Lighting

  • Corporate Shows and Special Events Where Atmospheric Flexibility is Key

5.0
Brand:
TIPTOP
Origin:
Guangzhou
Product Type:
Stage Effect
Imported:
No
Custom Processing:
Yes
design customization

    oops...!

    no product data.

    Go to homepage

    Product advantages

    The laser moving head integrates powerful RGB lasers (2.5W total, six independent heads) with warm white LEDs for versatile beam and wash effects. It features precise wavelength-specific laser diodes for vivid colors, supports flexible DMX512/multi-mode control, and offers wide-range motorized scanning. Built with an IP56 rating, fan cooling, and a 10,000-hour lifespan, it is designed for reliable, high-impact performances in demanding indoor venues like nightclubs, stages, and event spaces.


    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 7  Y-axis scanning: 0-240 degrees

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 8  Y-axis scanning: 0-135 degrees

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 9  X/Y- axis fine-tune: 0-255degrees

    微信图片_20260121105523
    微信图片_20260121105804
    Control and connections

    Personalities

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 12 DMX Channel: 12CH/24/40CH

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 13 Protocols: DMX

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 14 Connectors: Locking 3 pin XLR IN/ OUT

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 15 Power connector: Power Twist In/Out

    Dynamic effects

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 16 Colors: RGB color mixing system

    Hardware & software

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 17 LED display screen

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 18 DMX-512, Sound,Auto,Master/Slave

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 19 Housing

    Aluminum cover

    Two side handles for transportation

    IP20 protection rate

    Working in any position

    Cooling system: fan forced cooling

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 20 Electrical

    Optical voltage: AC100-240V,50/60 Hz

    MAX power consumption: 180Watt

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 21 Packaging

    Carton box + Foam shell

    Flight case + Foam shell

    6-Head RGB Full Color Laser Moving Head with 7x Warm White LEDs & Dual-Color Matrix Control 22 Weight - size

    Net Weight: 15 Kg(33.07lbs)

    Size: 30.71" x15.36" x 12.6" (78L x 39W x 32H)

    微信图片_20260121105520

    Application scenarios

    微信图片_20260121111843
    微信图片_20260121111843
    微信图片_20260121111840
    微信图片_20260121111840
    微信图片_20260121111837
    微信图片_20260121111837
    微信图片_20260121111834
    微信图片_20260121111834
    微信图片_20260121111827
    微信图片_20260121111827
    微信图片_20260121111823
    微信图片_20260121111823
    微信图片_20260121111820
    微信图片_20260121111820
    微信图片_20260121111816
    微信图片_20260121111816
    微信图片_20260121111856
    微信图片_20260121111856
    微信图片_20260121111859
    微信图片_20260121111859

    Product specification

    Light source

    Source type

    RGB laser tube

    Power

    RGB2.5W:(R180mW+G80mW+B250mW) * 6

    LED

     5W warm white LED * 7

                                                                                                          * Laser total power:RGB 2.5W

                                                                                                Single head laser power: 500mw

                                                                                                Green G 80mW:525NM

                                                                                                Red    R 180mW:638NM

                                                                                                Blue   B 250mW:450N

    Photometric data

     Beam diameter and divergence

    15mm :<2mard

     Scanning system

     stepper motor(M57-1,M42-5)

    Scanning  angle

     plus or minus 25 degrees
