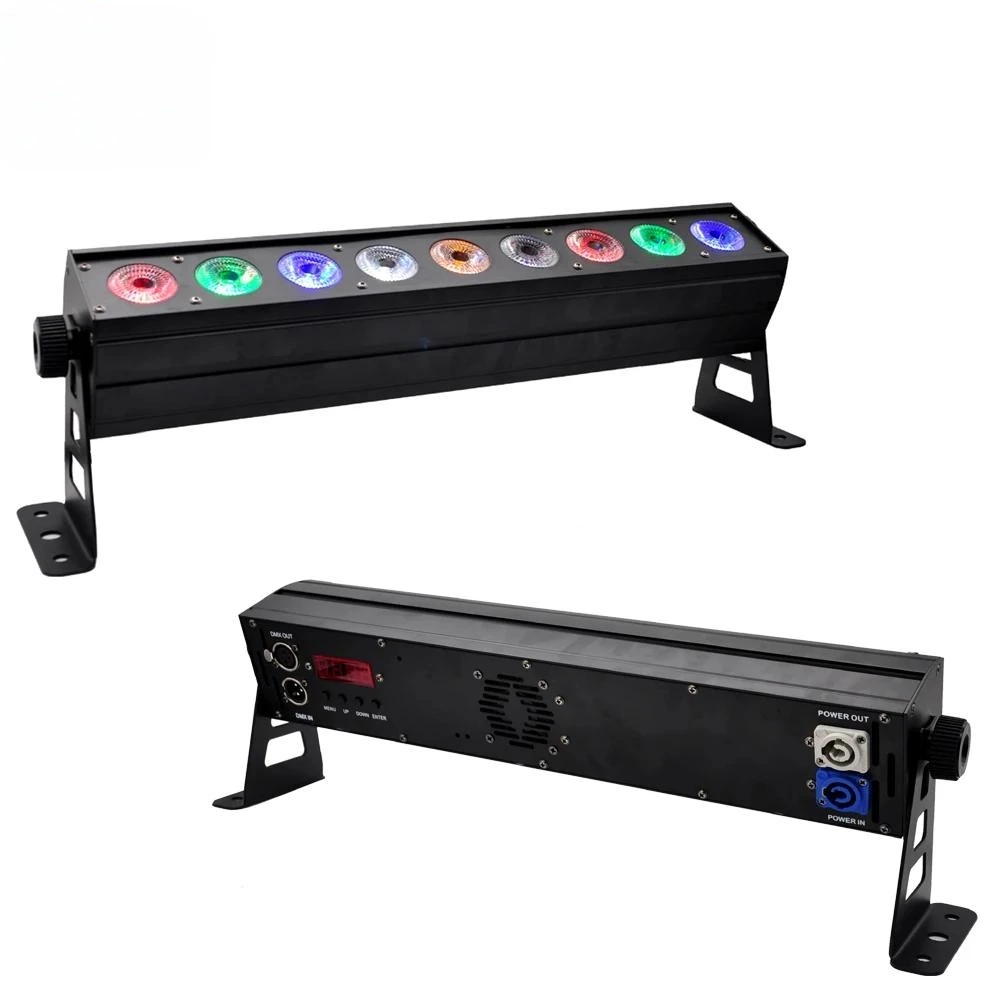

The TIPTOP 18W LED Pixel Cutter represents our commitment to innovation and quality in stage lighting technology. Designed and manufactured entirely in-house at the TIPTOP STAGE LIGHT FACTORY, this fixture provides unparalleled flexibility and control.
At its core are 9 high-power 18W LED chips, each individually controllable (RGBWA+UV), allowing for intricate pixel-level effects and a vast color spectrum. The 15-degree lens ensures a sharp, intense beam for maximum impact. It supports versatile control modes including DMX512 (with 6/8/11/54/56 channel options), Sound Active, Master/Slave, and standalone operation.
User-friendly features include an LED display for easy setup and a comprehensive built-in library with 12 fixed pixel effects and 13 user-customizable DIY effects, all mixable with strobe. Engineered for durability and stability, it features automatic temperature protection and a wide voltage input (AC90-260V), ensuring consistent performance anywhere in the world.
Product advantages
The TIPTOP STAGE LIGHT FACTORY's advanced 18W LED Pixel Cutter. Engineered for exceptional control and vibrant output, this fixture features 9 individually addressable RGBWA+UV LEDs.Crafted with precision in our own facility, this light guarantees reliability, longevity (50,000 hours), and creative freedom for stage, studio, and architectural & fixed Installations.
Superior Pixel Control 9X18W RGBWA+UV LEDs offer millions of colors and complex, dynamic patterns for breathtaking visual displays.
High-efficiency LEDs with a rated life of 50,000 hours
0-100% smooth electronic dimming and multiple control modes (DMX512/Sound/Master-Slave) provide total creative command.
Personalities
DMX Channel: 6CH/8CH/11CH/54CH/56CH
Protocols: DMX
Connectors: Locking 3 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBWA UV color mixing system, 16.7 million kinds of color change
Effect macros
Color change, color strobe, color dimmer, color gradual change/color jump change
Dimmer/Strobe
Liner Dimmer: 0-100% linear dimmer
Strobe: 1 – 20Hz
LED display screen
DMX512/Auto/Master Slave/Sound activated
Temperature protection: temperature protection by controlling the output power
Built-in 12 fixed running pixel effects, which can be mixed with strobe effects
Built-in 13 DIY running pixel effects, you can choose the background color and running color, and can be mixed with the strobe effect at the same time
Housing
Aluminum die casting
Working environment: Indoor&outdoor
Electrical
Optical voltage: Ac100-240v,50/60 hz
Max power consumption: 135watt
Packaging
Carton box + foam shell
Flight case
Weight - size
Net weight: 8.82lbs(4Kg)
Size: 21.65" x3.94" x 6.3" (l55x w10 x h16)
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBWA UV LEDs |
|
Power |
6x18W |
|
LED life expectancy |
60,000-100,000 hrs |
|
Photometric data |
|
|
Led Range |
15° |
