2 DVI interfaces, expandable two display, MIDI input and output interface, LTC/SMPTE time code, audio input and output, microphone input interface Built-in 1 drawer, built-in push-pull professional yellow backlit mechanical keyboard (backlight brightness adjustable)
Wide pressure industrial power supply 100V-240V 50/60Hz
Built-in high power UPS uninterruptible power supply
Support RDM function
Product advantages
Intel core i7 cpu. 8gb RAM.128g solid state drive
4 USB ports. 1 audio port. 1 networkport. 2 work liaht ports
21 program playback faders,42 program storage function keys
1 LTC time code input interface,1MIDI time code input interface
6 DMX-512 output interfaces1DMX-512 input interface(composite type)
Two 19-inch wide-screen touch screens with electric lifting and lowering
AC90-250V.50-60Hz built-In UPS uninterruptible power supply power 450W
Can run MA 3D software and wysiwyg3D software advanced rendering smoothly
1 main control dimming wheel. 4 attribute table wheels1 main control putter2 AB putters
Packaging
Flight Case + Foam Shell
Weight - Size
Net Weight: 80kg(176.37lbs)
Size: 40.55" X14.17" X 34.25" (L103 X W36 X H87)

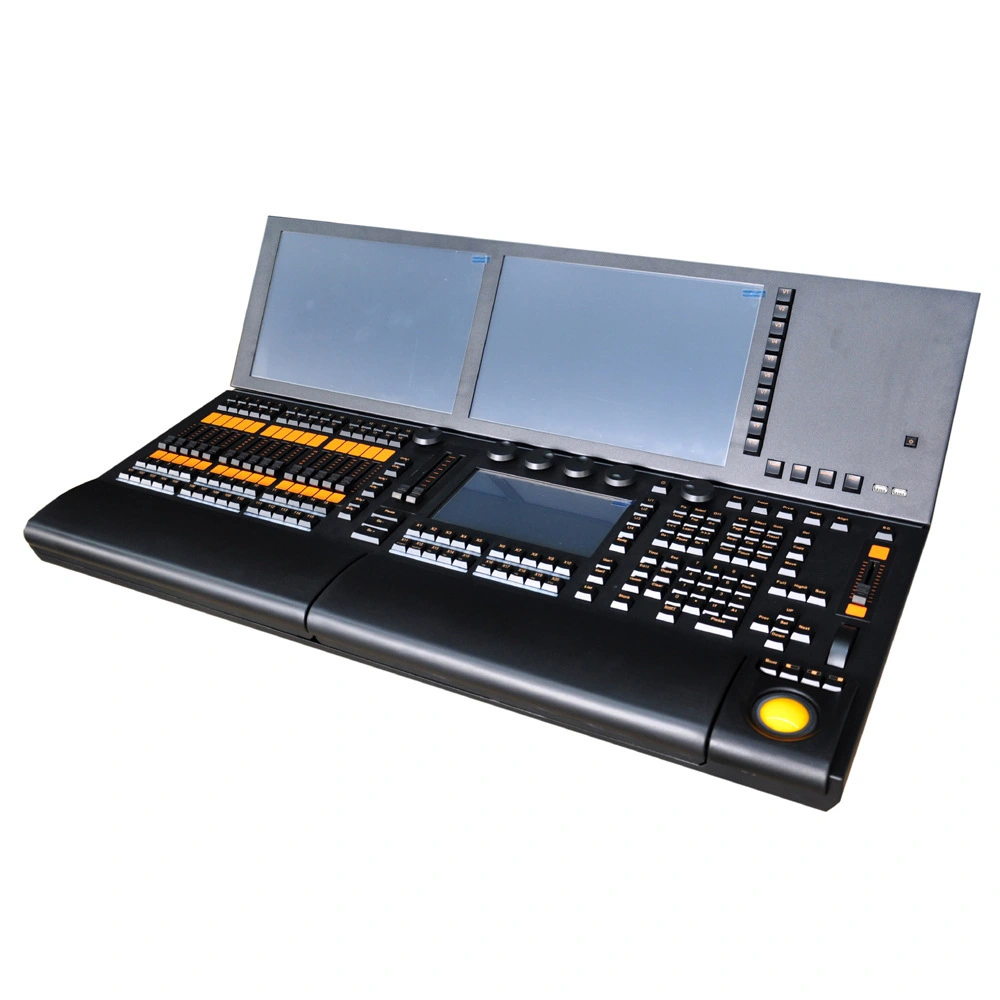

Product specification
Professional Linux operating system
Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch industrial full-view touch screen, powerful i5CPU, 4G memory, built-in solid state drive, Geforce graphics 2
6 DMX output ports, 1 composite DMX input port (can be set as output), can connect up to 65536 channels with NPU, 15 electric replay faders with sensor function (60mm), 50 executive programs Button, 1 total control fader, 1 dimming wheel
1 controllable XY axis high precision imported trackball
2 A/B field electric push rods (100mm)
6 imported industrial grade wear-resistant encoders (with Push function), 2 Gigabit Ethernet ports, support MA NET, ARTNET, ETC NET2, PATHPORT, SCAN, SHOWNET, KINET1 signals, 5 USB interfaces, 1 backup USB Access port
2 work light interfaces
2 DVI interfaces, expandable two display, MIDI input and output interface, LTC/SMPTE time code, audio input and output, microphone input interface
Built-in 1 drawer, built-in push-pull professional yellow backlit mechanical keyboard (backlight brightness adjustable)
Wide pressure industrial power supply 100V-240V 50/60Hz
Built-in high power UPS uninterruptible power supply
Support RDM function
Product display
