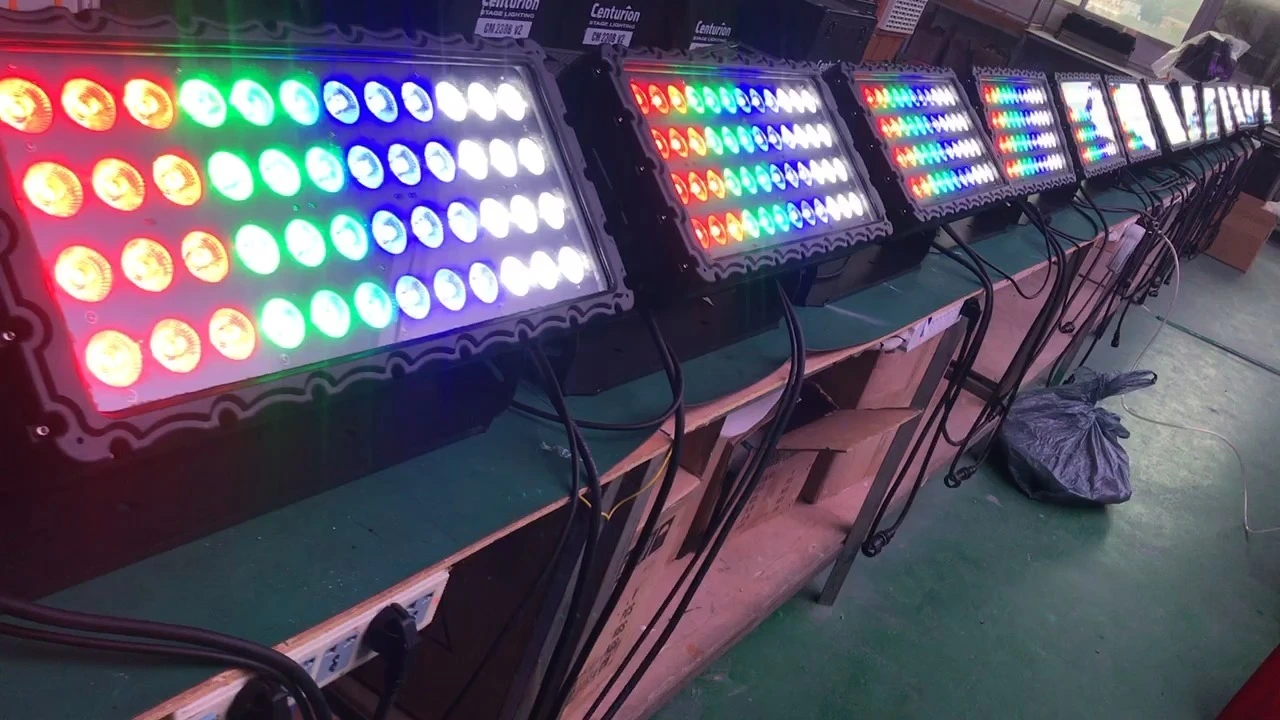

The TIPTOP 870W LED Wall Washer represents the pinnacle of high-power architectural and stage lighting technology, designed and manufactured entirely in-house at the TIPTOP STAGE LIGHT factory. It integrates 72 potent 12W LEDs (RGBW) to produce a massive luminous flux, capable of illuminating large-scale building facades and stage backdrops with rich, consistent color and pure white light.
Constructed for ultimate resilience, the fixture boasts an IP65 rating, ensuring complete protection against dust and water jets for reliable operation in all weather. It offers professional control versatility through DMX512 (4/8/12 channels), Master/Slave, Sound Active, and manual modes, complemented by a 1-20Hz strobe and smooth 0-100% electronic dimming for dynamic effects.
Understanding the needs of professional users, each unit is packaged in a custom flight case with silent wheels, ensuring secure storage and effortless transportation, reflecting the tour-ready quality TIPTOP is known for.
Product advantages
The This fixture features 72 high-output 12W LEDs in an RGBW configuration, delivering breathtaking, uniform washes.This high-lumen output wall washer is the ideal solution for large-scale illumination projects:Grand Architectural Lighting,Permanent Installations for Venues.
Monumental 870W RGBW Output
Professional flight case with silent wheels
IP65 waterproof rating for outdoor use
4-in-1 color mixing with wide color gamut
Wide voltage input (AC90-260V, 50/60Hz)
Personalities
DMX Channel: 4CH/8CH/12CH
Protocols: DMX
Connectors: Locking 3 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBW color mixing system, 16.7 million kinds of color change
Effect macros
Color change, color strobe, color dimmer, color gradual change/color jump change
Dimmer/Strobe
Liner Dimmer: 0-100% linear dimmer
Strobe: 1 – 20Hz
LED display screen
DMX512/Auto/Master Slave/Sound activated
Housing
Aluminum die casting
Working environment: Indoor&outdoor
Electrical
Optical voltage: Ac100-240v,50/60 hz
Max power consumption: 870watt
Packaging
Carton box + Wooden case
Flight case
Weight - size
Net weight: 97lbs(44kg)
Size: 32.68" x16.93" x 25.59" (l83x w43 x h65)
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBW LEDs |
|
Power |
72x12W |
|
LED life expectancy |
60,000-100,000 hrs |
|
Photometric data |
|
|
Led Range |
25° |
Product details
