High-Intensity Pixel Beam Effects: Features 12 powerful 30W RGBW (4-in-1) LEDs, each capable of individual pixel control. This allows for intricate chase, strobe, and matrix effects, producing stunningly sharp 3° beams through a high-quality large lens system for maximum visual punch.
Unmatched Versatility & Control: Effortlessly adapt to any setup with multiple control modes: standard DMX512 (13/57 channels), Master-Slave synchronization, Sound Active mode for instant music response, and a built-in library of auto programs for standalone operation.
Reliability by TIPTOP Stage Lighting: Built with a robust 400W power supply supporting AC 90-240V, it guarantees stable operation anywhere. Combined with a 20,000-hour LED lifespan, it offers professional-grade durability and reduced long-term costs, making it a trusted choice for rental houses and touring crews.
Complete Professional Package: Designed for power and convenience, it includes 0-100% linear dimming and a fast 1-25 Hz strobe. The rugged construction (9.6kg) ensures it can withstand the rigors of travel and frequent use.
Precision Engineering for Dynamic Movement: A 90° Y-axis pan with 16-bit micro-stepping ensures exceptionally smooth, silent, and high-resolution movement. This translates to fast, accurate, and fluid beams that perfectly track the energy of any DJ performance.
Product advantages

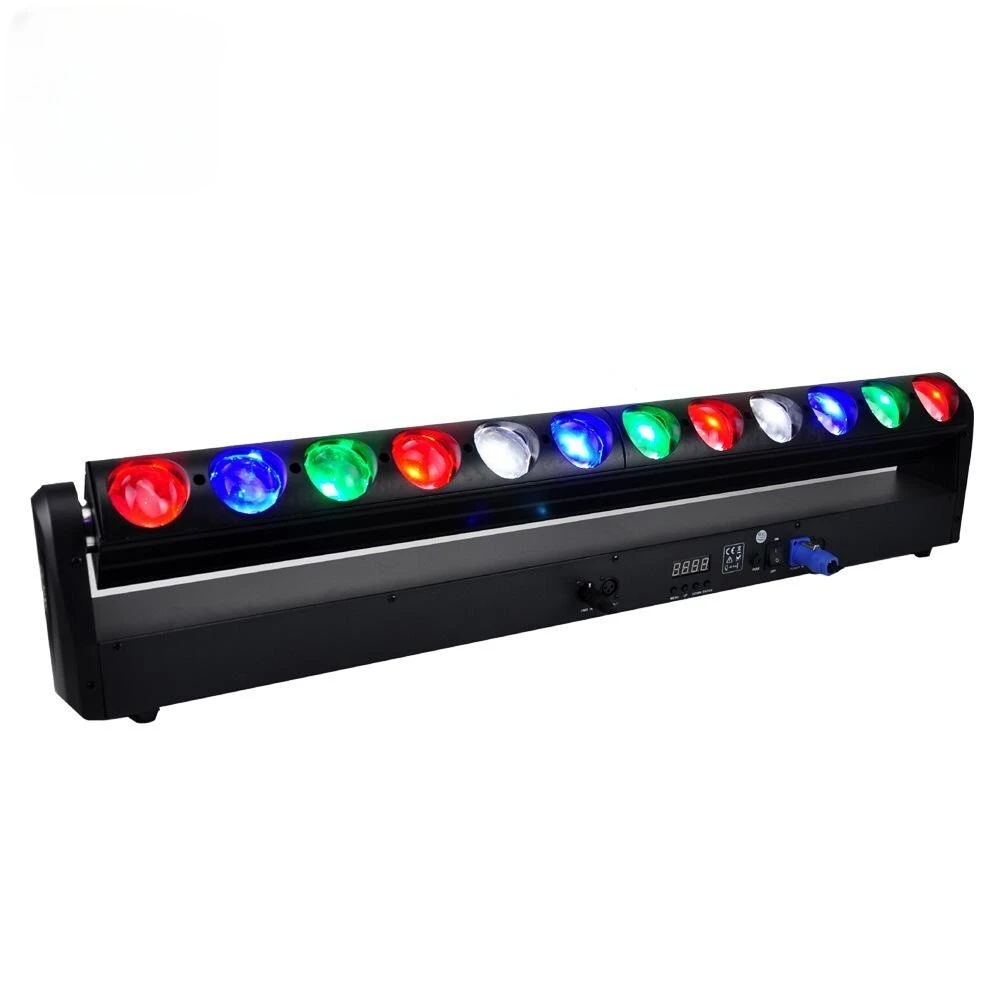

The This high-performance 12x30W LED Beam Moving Head from TIPTOP Stage Lighting is engineered for dynamic stage and event applications.With a 3° optical angle and a large lens, it produces intense, tight beams ideal for creating striking visual effects.
Pixel Control & Vibrant Output
Sharp Beam & Smooth Movement:Only 3° beam angle creates an extremely sharp and intense beam
Operational Versatility 13/57 dual dmx channels mode
4-in-1 color mixing with wide color gamut
Live Music Performances & Concerts
Personalities
DMX Channel: 13CH/57CH
Protocols: DMX
Connectors: Locking 3 pin XLR IN/ OUT
Power connector: Power Twist In/Out
Colors
RGBW color mixing system, 16.7 million kinds of color change
Effect macros
Color change, color strobe, color dimmer, color gradual change/color jump change
Dimmer/Strobe
Liner Dimmer: 0-100% linear dimmer
Strobe: 1 – 25Hz
LED display screen
DMX512/Auto/Master Slave/Sound Activated
Tilt: 210-degree movement
Cooling system:fan forced colling system
Housing
Aluminum die casting
Working environment: Indoor&outdoor
Electrical
Optical voltage: Ac100-240v,50/60 hz
Max power consumption: 400watt
Packaging
Carton box + foam shell
Ch Flight case
Weight - size
Net weight: 21.16lbs(9.6Kg)
Size: 42.13" x9.06" x 4.33" (l107x w23 x h11)
Application scenarios
Product specification
|
Light source |
|
|
Source type |
RGBW 4in1 (support pixel control) |
|
Power |
12x30W |
|
LED life expectancy |
50,000 |
|
Photometric data |
|
|
Led Range |
3° |
Product details
