Core Performance & Processing:
Driven by a stable Celeron dual-core processor and a fast 60G solid-state drive, the console ensures quick boot times and smooth operation of the sophisticated Titan OS (versions 10.0 to 11.1). The integrated 90-minute UPS power supply guarantees uninterrupted performance, protecting your show from unexpected power disruptions.
Unmatched Output & Scalability:
The console comes standard with 4 built-in DMX outputs, providing 2,048 control channels. For larger productions, its networking capabilities are exceptional: it supports Art-net for up to 12 universes and the proprietary Titan-net protocol, expanding output to a massive 64 universes. This makes it a future-proof solution for any show size.
Intuitive Control Interface:
A high-brightness 14.1-inch touch screen serves as the primary interface for visual programming. This is complemented by 10 tactile mechanical playback faders and 20 customizable macro buttons for instant access to key functions. The console can be further expanded with the Titan Fader Wing, adding 20 more faders and 30 macro functions.
Professional Connectivity & Compatibility:
Comprehensive Ports: Features a Gigabit network port, headphone output, and USB connectivity.
Protocol Support: Fully supports Art-net, Titan-net, and Streaming ACN for seamless integration with a wide range of equipment.
File Compatibility: Show files are compatible across the entire TITAN console family, ensuring a smooth workflow.
Portable and Rugged Design:
Weighing only 8kg and with compact dimensions, the console is highly portable. It is supplied with a protective flight case (air box) for safe transportation, making it the ideal partner for technicians on the move.

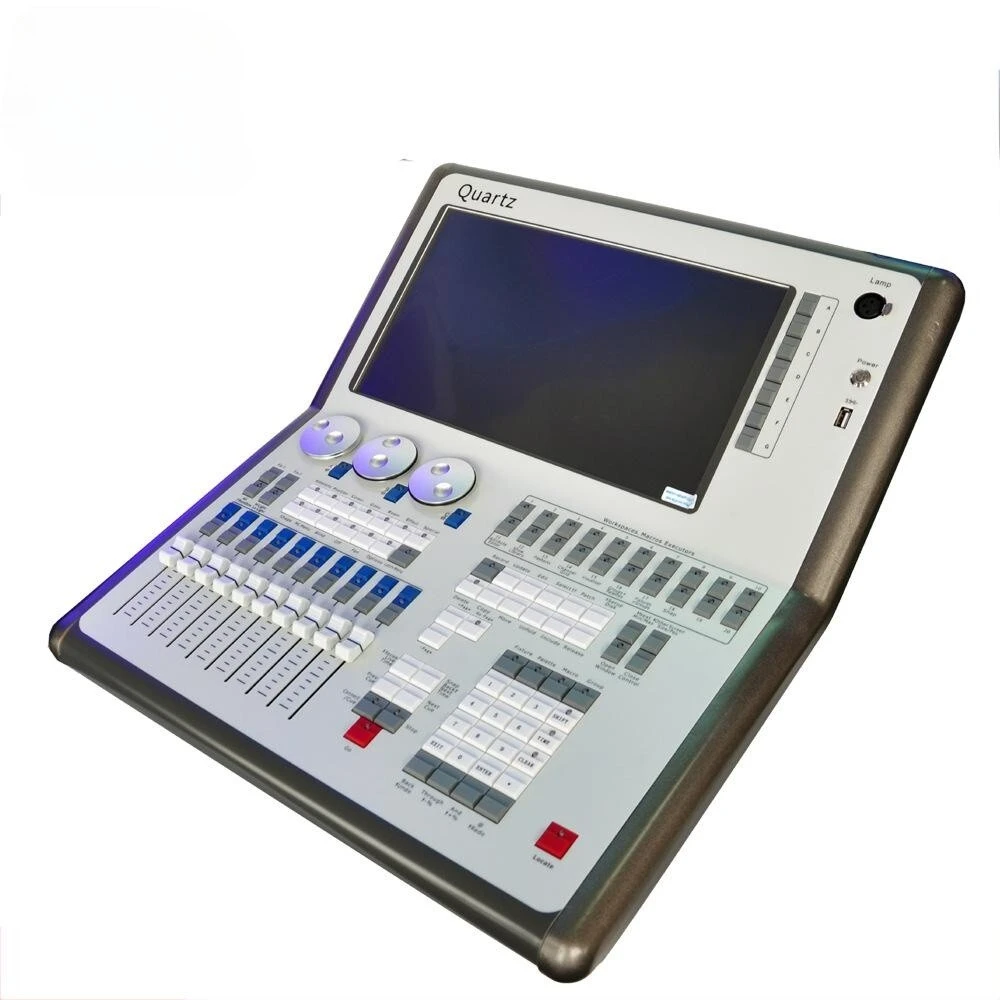

The TIPTOP STAGE LIGHT Quartz Tiger Touch Console consolidates professional-grade output, intuitive control, and robust build quality into a single, portable unit, representing outstanding value and performance in the world of lighting control.
Product advantages
Robust & Reliable Core System
Equipped with a stable Celeron dual-core processor and a fast 60G solid-state drive for quick boot-ups and smooth operation. The integrated 90-minute UPS power supply provides critical backup, safeguarding your show against unexpected power failures and ensuring a flawless, uninterrupted performance.
Extensive and Scalable DMX Output
Offers exceptional flexibility for shows of any scale. With 4 built-in DMX ports (2,048 channels), it handles standard setups with ease. Its advanced networking allows for expansion up to 12 universes via Art-Net or an impressive 64 universes using the proprietary Titan-net protocol, making it ready for the most complex and large-scale productions.
Intuitive and Expandable Control Interface
The 14.1-inch high-brightness touchscreen provides a clear, responsive interface for visual programming. This is perfectly complemented by 10 mechanical playback faders and 20 custom macro buttons for tactile, real-time control. The console's functionality can be significantly enhanced by connecting the optional Titan Fader Wing, which adds 20 more faders and 30 macro functions.
Portable and Road-Ready Design
Weighing just 8kg and featuring a compact form factor, this console is built for portability. It is supplied with a robust air box flight case (total shipping weight 23kg), offering superior protection during transit and making it an ideal, rugged solution for touring technicians and mobile DJs.
Packaging
Flight Case + Foam Shell
Weight - Size
Net Weight: 17.64lbs(8Kg)
Size: 23.23" X21.26" X 13.78" (L59 X W54 X H35)
Product specification
Professional Linux operating system
Celeron dual-core processor, 60G solid state drive, 90-minute ups power supply.
Built-in 4 DMX output ports, 2048 channels; Supports Art-net network output and can be expanded to 12 Universe DMX outputs over the network
Supports Titan-net protocol and can be extended to 64 Universe DMX outputs 10 mechanical page flip playback faders
20 custom marco function buttons.20 playback faders, 30 custom macro functions,
Expandable Titan Fader wing (replay auxiliary station
Support for headphone output (Headphone)
Gigabit net work interface support Artnet,Titan Net
Streaming Can protocol,compatible with other TITAN system console
Wide pressure industrial power supply 100V-240V 50/60Hz
Product display
