Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment

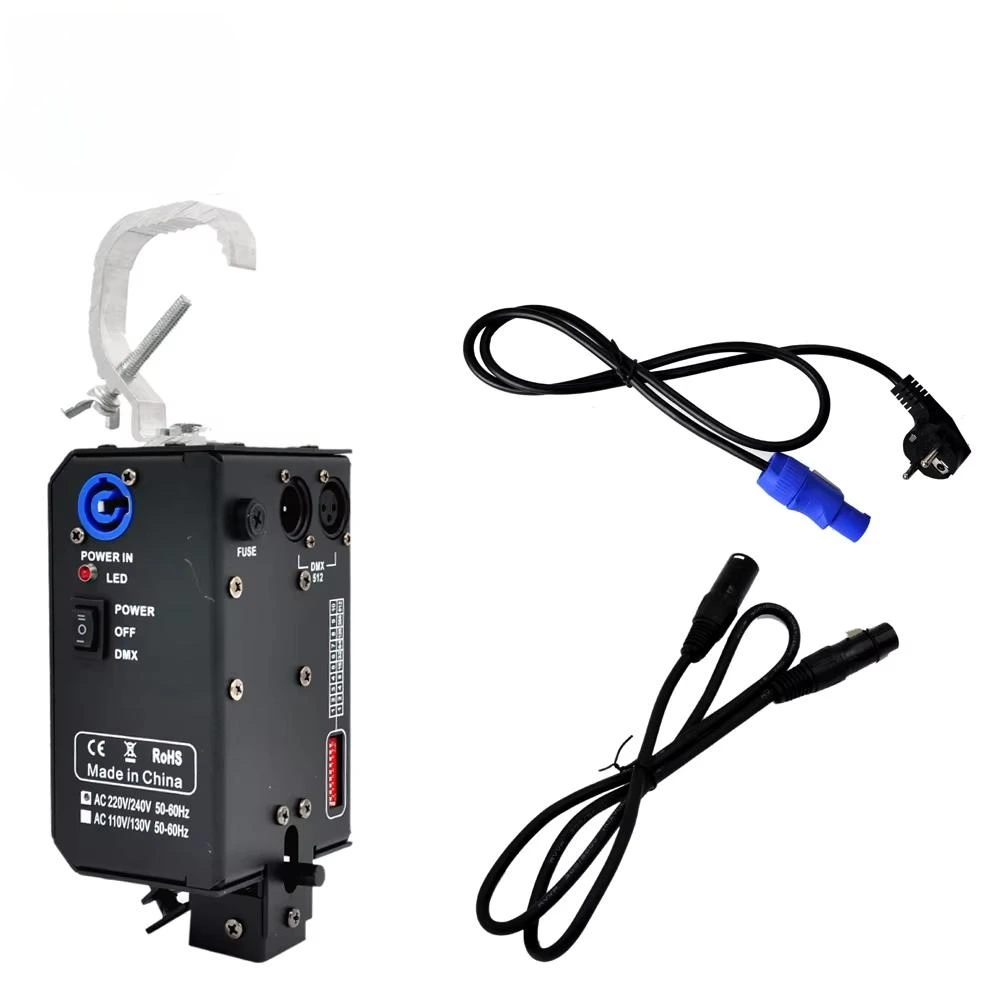

The TIPTOP STAGE LIGHT Kabuki Drop Machine is a compact (2kg), high-performance system designed for dramatic on-stage reveals. Supporting a 35kg load and dual control (Power/DMX512), it allows for precise triggering of curtain drops in theatrical, event, and concert settings. With simple 2-channel DMX control and daisy-chain capability, multiple units work in unison to create stunning visual moments, making it an essential tool for any professional stage production.

Brand:

TIPTOP

Origin:

Guangzhou

Product Type:

Stage Effect

Imported:

Custom Processing:

Yes

Inquiry

Write a Review

Product advantages

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 7 Its key strength lies in its dual voltage capability (110V/220V), making it suitable for use in different regions worldwide without requiring a separate transformer.

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 8 Supporting both a simple manual power switch for basic use and a professional DMX512 protocol for precise, integrated control in complex setups

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 9 The DMX interface is streamlined for ease of use with only 2 channels, simplifying programming.

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 10 The intuitive control sequence ensures reliable performance: first setting the open time (Channel 2) and then triggering the open action (Channel 1).

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 11 Despite its robust performance with a 35kg load capacity per unit, the machine itself is remarkably lightweight at only 2kg, facilitating easy installation and handling.

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 12 For system integration, clear guidelines ensure optimal performance, with a suggested controller distance of 1m-1.2m between machines to maintain signal integrity.

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 13 Package by carton box or by flightcase 10in1

Packaging

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 14 Flight Case + Carton box

Weight - Size

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 15 Net Weight: 5.51lbs(2.5kg)

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 16 Size: 13.39" X7.87" X 7.09" (L34X W20 X H18)

Product specification

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 19 Voltage: 110V/220V.Power: 100W

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 20 Load weight: 35kg/unit

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 21 Control way: power (manual way)/DMX512

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 22 DMX channels: 2

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 23 Machine weight: 2kg

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 24 Controller distance: suggest 1m-1.2m between 2 machines.

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 25 DMX channels information:

Channel 1= open (the machine clamp will open 1 second directly)

Channel 2= open time (maximum time is 3 seconds)

Theatrical Kabuki Curtain Drop Machine for Stage Reveals | DMX512 & Powercon Controlled Auto Release System Equipment 26 *We suggest customer push channels 2 from 0-255 firstly. Then push channel 1 again. If no open successfully. Then push channels 2 to 255 and push channel 1 again.

Product display

微信图片_20251124152735

微信图片_20251124152737

微信图片_20251124152741

微信图片_20251124152744

微信图片_20251124152747

微信图片_20251124152750

微信图片_20251124152754
