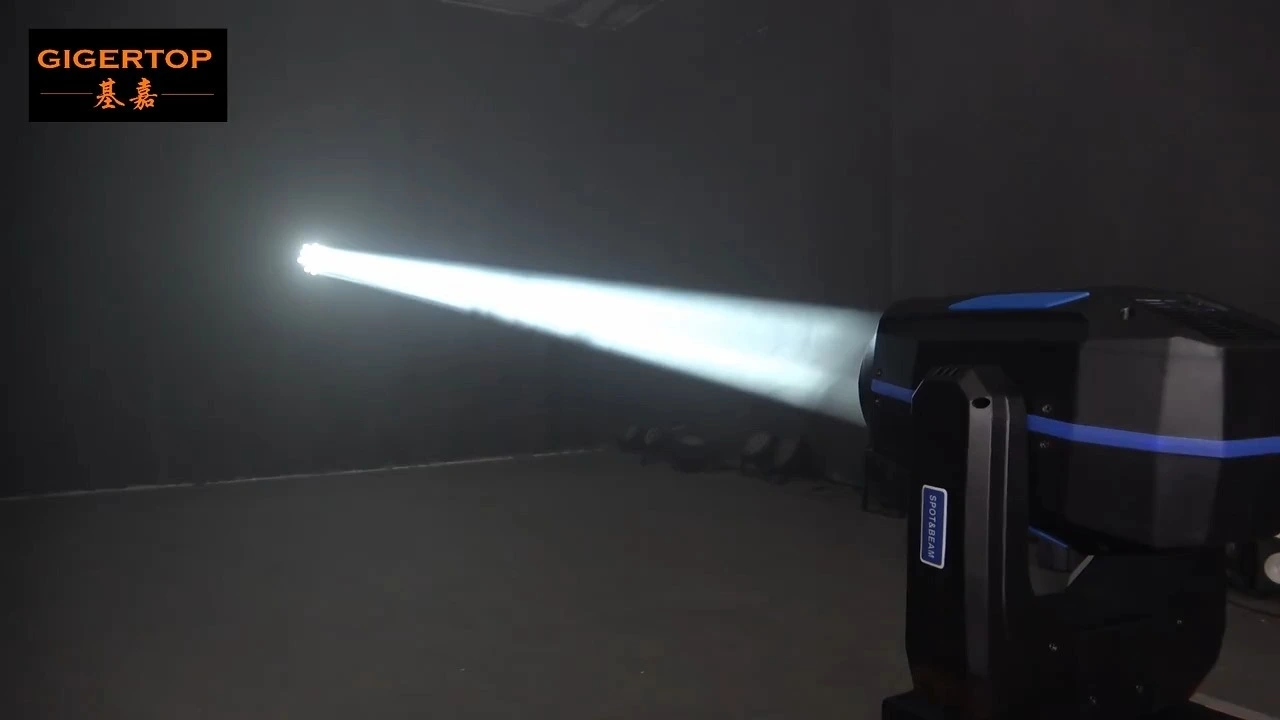

260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 1
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 2
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 3
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 4
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 5
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 6
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 1
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 2
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 3
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 4
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 5
260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 6

260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events

This 260W Beam Moving Head Light is designed for venues and events requiring powerful, adaptable beam effects with rich color and pattern options. Its key value lies in combining a high-intensity discharge lamp with a versatile optical system and user-friendly controls, delivering professional lighting performance at an accessible level. Ideal for stage productions, KTV rooms, bars, and mobile DJ setups, it creates immersive atmospheres through vivid beams, prism effects, and smooth washes.
  • High-Output Light Source: Uses a reliable 260W Japanese Phoenix lamp with a 8000K cold white temperature, ensuring bright, crisp beams ideal for cutting through ambient light.

  • Adjustable Beam Optics: Features a wide beam angle range (4°–60°) and motorized focus (3.8°–45° linear adjustment), allowing seamless transitions from tight aerial shafts to broad washes.

  • Rich Effect Options: Includes a 13-slot color wheel (with rainbow effect), a 13-slot pattern wheel, a rotating 8-facet prism, a 24-facet honeycomb prism, a frost filter, and a dedicated rainbow lens—enabling diverse visual textures and dynamic looks.

  • Flexible Control & Protection: Supports DMX512, sound activation, master-slave, and manual operation via an 18-channel mode. Integrated features like mechanical/speed-adjustable strobe, strobe macros, auto-reset, and overheat protection ensure safe, consistent performance.

  • Smooth Movement & Durability: Provides 540° horizontal and 270° vertical pan/tilt with precise scanning. Built to IP20 standards for indoor use, with optional flight case packaging for transport protection.

  Conclusion
Choose this 260W Beam Moving Head if you need a reliable, feature-rich lighting fixture that excels in beam effects, color mixing, and pattern projection. Its combination of a quality lamp source, wide zoom range, multiple prism and color options, and flexible control modes offers strong value for entertainers, venue owners, and event producers looking to enhance visual impact without compromising on usability or durability.

5.0
Brand:
TIPTOP
Origin:
Guangzhou
Product Type:
Stage Effect
Imported:
No
Custom Processing:
Yes
design customization

    oops...!

    no product data.

    Go to homepage
    Control and connections

    Personalities

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 7 DMX Channel: 18CH

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 8 Protocols: DMX

    Dynamic effects

    Colors:

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 9 Color wheel: 13 color plus open

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 10 Gobo wheel: 13 pattern plus open

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 11 Prism lens: 12+24 dual lens

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 12 Feature: standard additional lens is rainbow lens

    Effect macros:

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 13 0%-100% linear dimming, smooth without flicker

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 14 Strobe: 0-25Hz

    Hardware

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 15 LCD display screen

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 16 Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp!

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 17 Pan:540 ° rotation, resolution 8/16 bit, with fine tuning

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 18 Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning.

    微信图片_20260104145549
    微信图片_20260104145545

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 21 Housing

    Aluminum die cast

    Two side handles for transportation

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 22 Electrical

    Optical voltage: AC100-240V,50/60 Hz

    MAX power consumption: 450Watt

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 23 Packaging

    Carton box + Foam shell

    Flight case + Foam shell

    260W Beam Moving Head Stage Light - 18-Channel DMX Control with 8 & 24 Facet Prism Effects for Disco and Bar Events 24 Weight - size

    Net Weight: 18 Kg(39.68lbs)

    Size: 17.72" x16.93" x 22.44" (L45 x W43 x 57H)

    Product display

    微信图片_20260104150158
    微信图片_20260104150158
    微信图片_20260104150229
    微信图片_20260104150229
    微信图片_20260104150406
    微信图片_20260104150406
    微信图片_20260104150401
    微信图片_20260104150401
    微信图片_20260104150356
    微信图片_20260104150356
    微信图片_20260104150350
    微信图片_20260104150350
    微信图片_20260104150344
    微信图片_20260104150344
    微信图片_20260104145555
    微信图片_20260104145555
    微信图片_20260104150142
    微信图片_20260104150142
    微信图片_20260104150149
    微信图片_20260104150149
    微信图片_20260104150204
    微信图片_20260104150204
    微信图片_20260104150213
    微信图片_20260104150213
    微信图片_20260104150218
    微信图片_20260104150218

    Application scenarios

    微信图片_20260104151717
    微信图片_20260104151717
    微信图片_20260104151713
    微信图片_20260104151713
    微信图片_20260104151733
    微信图片_20260104151733
    微信图片_20260104151705
    微信图片_20260104151705
    微信图片_20260104151709
    微信图片_20260104151709
    微信图片_20260104151702
    微信图片_20260104151702
    微信图片_20260104151657
    微信图片_20260104151657
    微信图片_20260104151654
    微信图片_20260104151654
    微信图片_20260104151649
    微信图片_20260104151649
    微信图片_20260104151643
    微信图片_20260104151643

    Product specification

    Light source

    Source type

    Japan Phenix bulb

    Power

    1x260W

    Ballast

    Electronic ballast

    LED life expectancy

    4000Hours(The bulb and reflector are packaged as a whole, with higher light efficiency and longer service life)

    Color Temperature

    8000K

    Photometric data

    Lens angle

    4-60°

    Product details

    微信图片_20260104151211
    微信图片_20260104151211
    微信图片_20260104151207
    微信图片_20260104151207
    微信图片_20260104151204
    微信图片_20260104151204
    微信图片_20260104151201
    微信图片_20260104151201
