TIPTOP Light- Professional Stage Light Manufacturer Offers Complete Solution Since 2012.

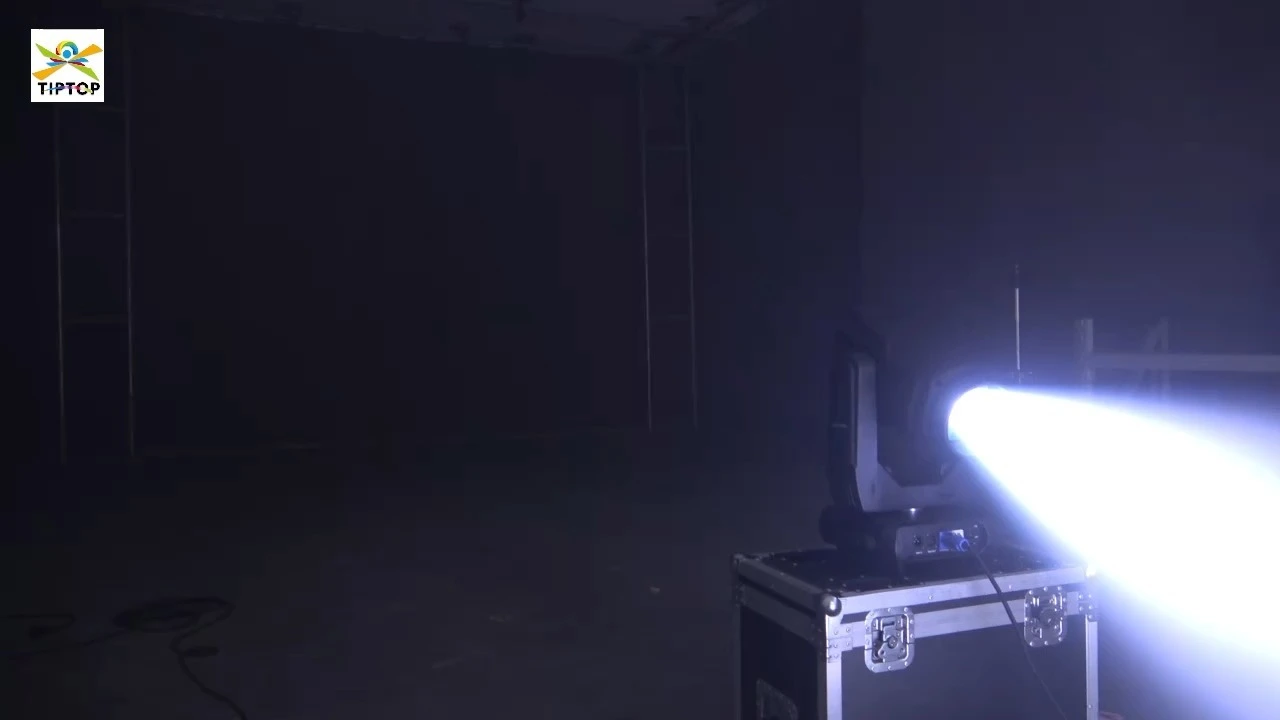

380W 20R BSW 3IN1 Moving Head Light

Unleash brilliant 3200K-5500K beams from a powerful 380W PHILIPS MSD Silver 380W bulb! These feature-packed 20R Moving Heads deliver stunning visuals:
540° Horizontal / 270° Vertical Scanning

Dual Prisms (8+16) + 11-Color Wheel +1 static gobo wheel + 1 rotating gobo wheel+ 1 efftct gobo wheel

Ultra-Precise Electric Zoom (2.3-33°) & Focus

Smooth 0-100% Dimming & Mechanical Strobe

Smart LCD Touch Control & 20/24-Channel DMX512

Auto Cooling, Positioning & Diagnostics

Powerful (550W Total), fast, quiet, and built smart! Master your stage with 20R Moving Heads!

Brand:

TIPTOP

Origin:

Guangzhou

Product Type:

Moving Light

Imported:

Custom Processing:

Yes

Inquiry

Write a Review

Control and connections

Personalities

380W 20R BSW 3IN1 Moving Head Light 7 DMX Channel: 20/24CH

380W 20R BSW 3IN1 Moving Head Light 8 Protocols: DMX

Dynamic effects

Colors:

380W 20R BSW 3IN1 Moving Head Light 9 Color wheel: 11 color plus open

380W 20R BSW 3IN1 Moving Head Light 10 Fixed Gobo wheel: 11 pattern plus open

Rotating Gobo Wheel:8 pattern plus open

Effect Gobo Wheel:4 pattern plus open

380W 20R BSW 3IN1 Moving Head Light 11 Prism lens: 8+16 dual lens

380W 20R BSW 3IN1 Moving Head Light 12 Feature: frost lens,6-layer coated film lens

CTO:3200K-5500K

380W 20R BSW 3IN1 Moving Head Light 13 Zoom beam angle: 2.3-33degree

Effect macros:

380W 20R BSW 3IN1 Moving Head Light 14 0%-100% linear dimming, smooth without flicker

380W 20R BSW 3IN1 Moving Head Light 15 Strobe: Fast to slow strobe with adjusted speed

Hardware

380W 20R BSW 3IN1 Moving Head Light 16 LCD display screen

380W 20R BSW 3IN1 Moving Head Light 17 Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp!

380W 20R BSW 3IN1 Moving Head Light 18 Pan:540 ° rotation, resolution 8/16 bit, with fine tuning

380W 20R BSW 3IN1 Moving Head Light 19 Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning.

380W 20R BSW 3IN1 Moving Head Light 22 Housing

Aluminum die cast

Two side handles for transportation

380W 20R BSW 3IN1 Moving Head Light 23 Electrical

Optical voltage: AC100-240V,50/60 Hz

MAX power consumption: 550Watt

380W 20R BSW 3IN1 Moving Head Light 24 Packaging

Carton box + Foam shell

Flight case + Foam shell

380W 20R BSW 3IN1 Moving Head Light 25 Weight - size

Net Weight: 22 Kg(48.5lbs)

Size: 24.02" x10.63" x 13.39" (L61x W27 x 34H)

Product display

未标题-1 (4)

微信图片_20251027151510

详情-08 (4)

详情-07 (5)

详情-09 (4)

详情-10 (6)

Application scenarios

详情-54

详情-55

详情-56

详情-57

O1CN01srdkA92F9P54tVOhM_!!2207766088837-0-cib

O1CN01PSpla82F9P55TPr8Y_!!2207766088837-0-cib

O1CN01jZ6RVP2F9P55NooFq_!!2207766088837-0-cib

O1CN01vHTRtJ2F9P562HBVo_!!2207766088837-0-cib

O1CN01v9WY9h2F9P53b5NT0_!!2207766088837-0-cib

O1CN01U7Vn9Y2F9P54Ts7Sr_!!2207766088837-0-cib

O1CN01rTrDqF2F9P54jKG5t_!!2207766088837-0-cib

O1CN01D7wjwi2F9P54jJzQV_!!2207766088837-0-cib

O1CN01lIl0El2F9P564DMQp_!!2207766088837-0-cib

O1CN01GoVypb2F9P54tTJar_!!2207766088837-0-cib

Product specification

Light source
Source type	PHILIPS MSD Silver 380W/2 LL bulb
Power	1x380W
Ballast	Electronic ballast
LUMEN	153000LUX@10m@34dgree
Color Temperature	3200K-5500K
Photometric data
Zoom Beam Angle	2.3°-33°

Product details

详情-12 (6)

详情-13 (5)

微信图片_20251027152243
