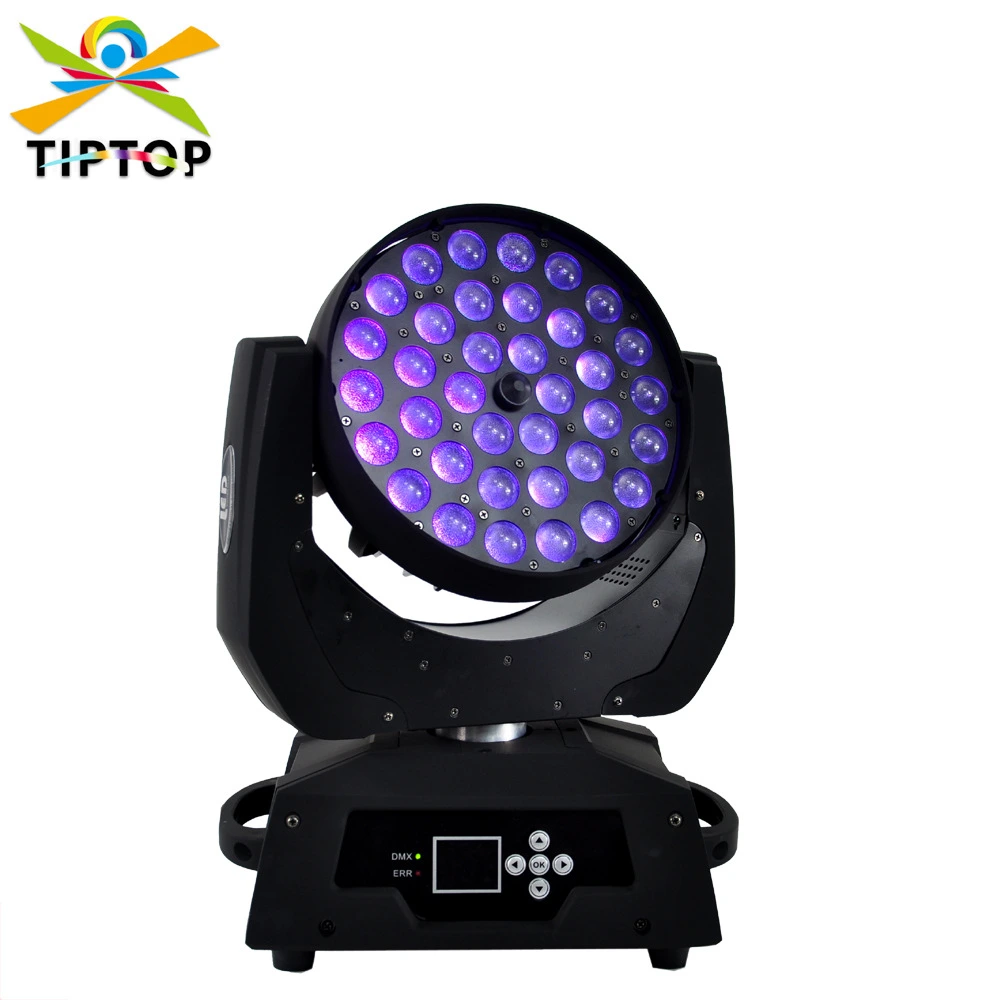

Fully Configurable Output: Choose from 36 pcs of 12W, 15W, or 18W LEDs and select your color system: RGBW (4-in-1), RGBWA (5-in-1), or RGBWA+UV (6-in-1).
Motorized Zoom & Dual Effects: Seamlessly transitions between a 15° sharp beam and a 60° wide wash with motorized zoom, functioning as both a beam and wash light.
Vivid Color & Smooth Control: Offers rich, saturated colors from the chosen system, with 0-100% linear dimming and a high-speed electronic strobe (1-30 Hz).
Precision Movement & Reliability: 540° pan and 270° tilt provide full spatial coverage. Features flicker-free operation (>2000Hz) for video, silent cooling, and an extreme operating temperature range (-40°C to 60°C).
Universal & Easy Operation: Works on AC90-260V power and supports DMX512, Master-Slave, Auto, and Sound Control for versatile setup.
Ideal Application Scenarios:
Live Events & Clubs: Perfect for concerts, festivals, nightclubs, and DJ performances where vibrant colors, beam effects, and wide washes are needed.
Theatrical & Stage Production: Suitable for theaters, stages, and houses of worship for accent lighting, backlighting, and creating atmospheric washes.
Mobile DJs & Rental Companies: Its durability, configurable options, and all-in-one functionality make it an excellent, versatile inventory piece.
Fixed Installations in Challenging Environments: Can be used in unheated warehouses or hot venues due to its wide operating temperature range.
Personalities
DMX Channel: different colors have different dmx channels
Protocols: DMX,Auto,Sound,Master/Slave
Colors:
Color:4in1 RGBW,5in1RGBWA,6in1 RGBWA UV
Zoom:15-60°
Effect macros:
0%-100% linear dimming
Strobe: 1-25times/second
LCD display screen
Pan:540 ° rotation, resolution 8/16 bit, with fine tuning
Tilt: 280 ° rotation, resolution 8/16 bit, with fine tuning.
Housing
Aluminum die cast
Two side handles for transportation
Pratt brand power connector and dmx connector
Electrical
Optical voltage: AC100-240V,50/60 Hz
MAX power consumption: 350Watt
Packaging
Carton box + Foam shell
Flight case + Foam shell
Weight - size
Net Weight: 12 Kg(26.46lbs)
Size: 17.32" x12.2" x 16.14" (L44 x W31 x 41H)
Product display
Application scenarios
Product specification
|
Light source |
|
|
Source type |
High powerful Led bulb |
|
Power |
36x12W/15W/18W |
|
Ballast |
Electronic ballast |
|
LED life expectancy |
50000Hours |
|
Color Temperature |
7800K |
|
Photometric data |
|
|
Lens angle |
15-60° |
Product details
