Light Engine: Japan Phoenix 380W Bulb. A trusted, high-quality lamp known for reliability and consistent 8000K pure white output, ensuring bright, vibrant colors.
System Power: 500W Power Supply with AC100-220V auto-voltage, guaranteeing stable performance worldwide.
Lifespan: 4,000 hours of working life, reducing long-term maintenance and replacement costs.
Movement: Wide 570° (X-axis) / 240° (Y-axis) rotation, offering maximum coverage and dynamic movement potential.
Unmatched Versatility: The combination of Beam + Wash (Frost) + Dual Prism + Dual Wheels means one fixture can perform multiple roles, offering excellent cost-per-function value.
Professional-Grade Output & Control: The 380W Phoenix lamp and 18CH DMX guarantee the brightness and precise control required for serious stage productions, concerts, clubs, and theatrical use.
Superior Effect Engine: The 24-facet prism is a premium feature that creates denser, more impressive beam multiplication than standard 8- or 16-facet prisms found in competitors' models.
Built for Reliability: Auto-voltage, overheat protection, and a 4,000-hr lamp life mean less downtime and worry, whether for touring or fixed installation.
Flexible Packaging: The optional 1-in-1 Flight Case is crucial for touring professionals, providing superior protection during transport.
This is the ideal choice if you need:
A powerful beam effect light for concerts, nightclubs, or worship stages.
A versatile single fixture that can also create washes and dense prism effects.
Professional, reliable equipment with precise DMX control for programmed shows.
A cost-effective long-term solution with high output and a trusted lamp brand.
For high-impact visuals, creative flexibility, and professional reliability, this 380W Beam Moving Head Light delivers exceptional value and performance to elevate any production.
Personalities
DMX Channel: 18CH
Protocols: DMX
Colors:
Color wheel: 17 color plus open
Fixed Gobo wheel: 14 pattern plus open
Prism lens: 8+24 prism lens
Feature: frost lens+rainbow color wheel
Frost
Effect macros:
0%-100% linear dimming, smooth without flicker
Strobe: 0-15Hz
LCD display screen
Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp!
Pan:540 ° rotation, resolution 8/16 bit, with fine tuning
Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning.
Housing
Aluminum die cast
Two side handles for transportation
Electrical
Optical voltage: AC100-240V,50/60 Hz
MAX power consumption: 500Watt
Packaging
Carton box + Foam shell
Flight case + Foam shell
Weight - size
Net Weight: 18 Kg(39.68lbs)
Size: 21.06" x14.76" x 15.94" (L53.5 x W37.5 x 40.5H)

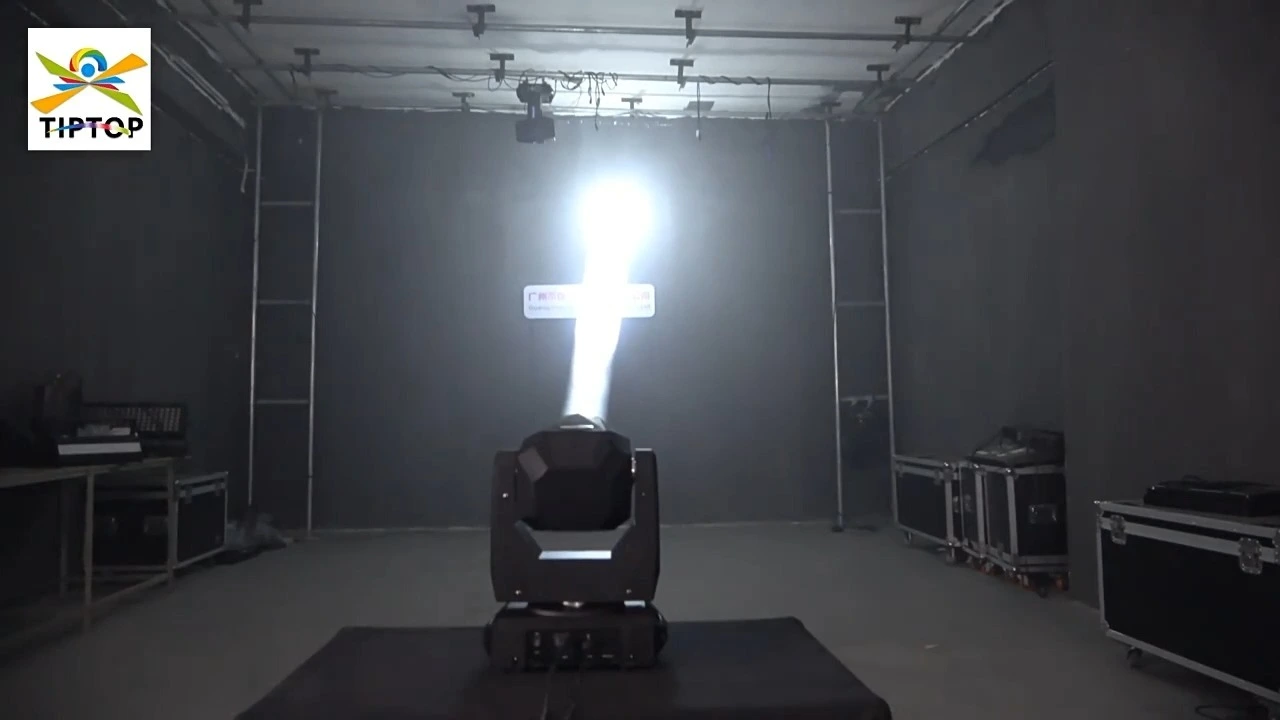

Product display
Application scenarios
Product specification
|
Light source |
|
|
Source type |
Japan Phoenix bulb |
|
Power |
1x380W |
|
Ballast |
Electronic ballast |
|
LED life expectancy |
4000Hours(The bulb and reflector are packaged as a whole, with higher light efficiency and longer service life) |
|
Color Temperature |
7800K |
|
Feature |
|
|
Feature |
Over heat protection |
Product details
