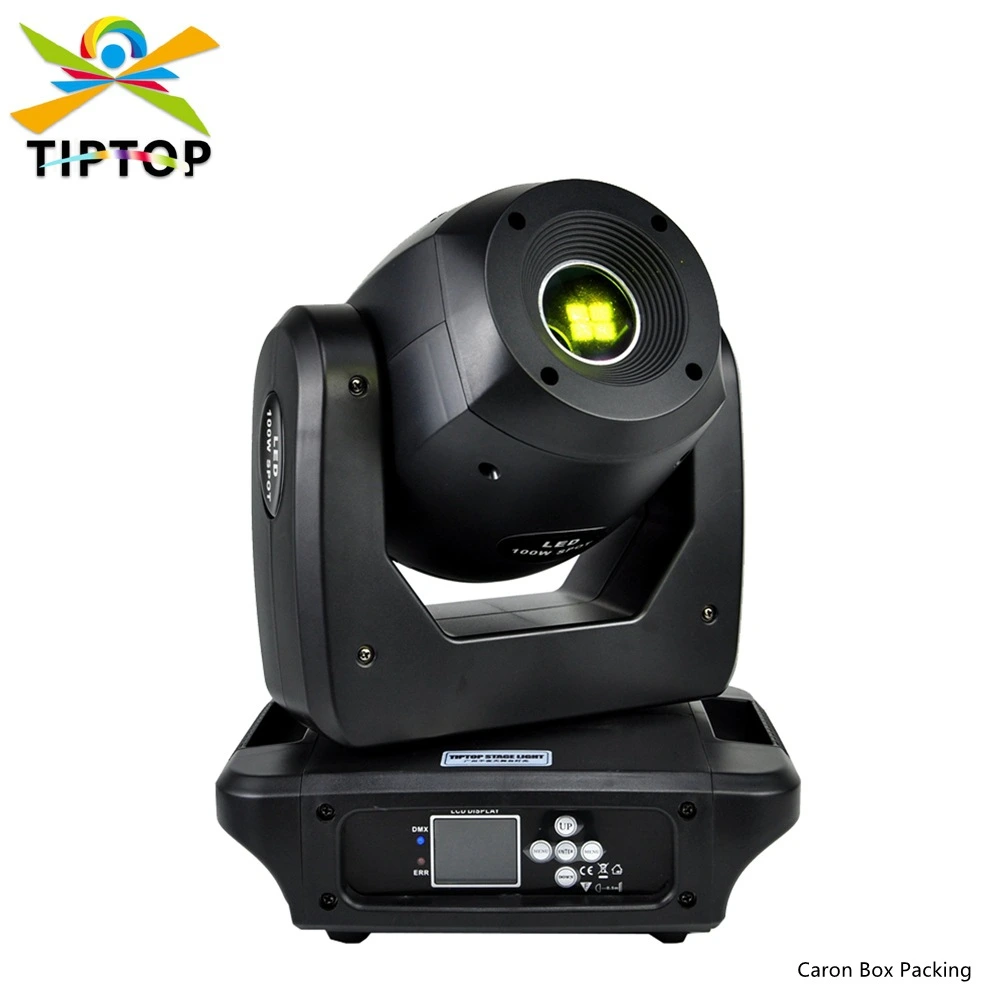

100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting

100W Ultra-Bright LED Moving Head: RDM-Enabled Multi-Effect Light with Glass Gobos

This high-performance moving head combines intense output with advanced creative controls, designed for dynamic lighting professionals.

  • High-Intensity Optical Engine: Powered by an ultra-bright 100W white LED with a narrow 15° beam angle, delivering a powerful, concentrated beam for maximum visual impact.

  • Comprehensive Creative Effects System:

    • Advanced Gobo System: Features 7 fixed patterns and 6 rotating glass gobos for superior image clarity and durability, with gobo shake and rainbow effects.

    • Multi-Facet Prism: Equipped with a 6-facet prism offering adjustable rotation speed and direction for creating complex, layered beam textures.

    • Vivid Color Mixing: 7-color wheel plus open, supporting split colors and smooth rainbow effects.

  • Precision Control & Flexibility:

    • Multi-Protocol Control: Operates via DMX512 (14 channels)Master/SlaveAuto programs, and Sound-Activation.

    • RDM Support: Enables remote management and addressing from the console for easier setup and troubleshooting.

    • Full-Range Movement & Optics: 540° pan / 270° tilt with speed control, plus linear dimming (0-100%), motorized focus, and a fast 1-20Hz strobe.

  • Efficient & Portable Design: Universal AC100-240V input with 200W power consumption. Lightweight at 5.9 kg for easy rigging and transportation, with optional flight case available.

5.0
Brand:
TIPTOP
Origin:
Guangzhou
Product Type:
Stage Effect
Imported:
No
Custom Processing:
Yes
design customization

    oops...!

    no product data.

    Go to homepage
    Control and connections

    Personalities

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 6 DMX Channel: 14CH

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 7 Protocols: DMX,Auto,Sound,Master/Slave,RDM

    Dynamic effects

    Colors:

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 8 Color wheel: 7 color plus open+spilt colors , rainbow effect

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 9 Fixed Gobo wheel: 7 pattern plus open.rainbow effect, gobo shake.

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 10 Rotate Gobo wheel:6 Glass gobos + open , Rainbow effect, gobo shake.

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 11 Prism; 6 facet prism, can adjustable rotating speed and direction.

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 12 Focus: motorized focus

    Effect macros:

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 13 0%-100% linear dimming

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 14 Strobe: 1-20times/second

    Hardware

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 15 LCD display screen

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 16 Pan:540 ° rotation, resolution 8/16 bit, with fine tuning

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 17 Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning.

    微信图片_20260112124613
    微信图片_20260112124609

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 20 Housing

    Aluminum die cast

    Two side handles for transportation

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 21 Electrical

    Optical voltage: AC100-240V,50/60 Hz

    MAX power consumption: 200Watt

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 22 Packaging

    Carton box + Foam shell

    Flight case + Foam shell

    100W High-Lumen LED Moving Head Light with DMX512, Sound Control, and Auto Programs for Stage and Event Lighting 23 Weight - size

    Net Weight: 5.9Kg(13.01lbs)

    Size: 17.72" x14.76" x 15.94" (L45 x W37.5 x 40.5H)

    Product display

    微信图片_20260112124807
    微信图片_20260112124807
    微信图片_20260112124747
    微信图片_20260112124747
    微信图片_20260112124803
    微信图片_20260112124803
    微信图片_20260112124759
    微信图片_20260112124759
    微信图片_20260112124755
    微信图片_20260112124755
    微信图片_20260112124751
    微信图片_20260112124751

    Application scenarios

    微信图片_20260112125124
    微信图片_20260112125124
    微信图片_20260112125119
    微信图片_20260112125119
    微信图片_20260112125115
    微信图片_20260112125115
    微信图片_20260112125111
    微信图片_20260112125111
    微信图片_20260112125108
    微信图片_20260112125108
    微信图片_20260112125041
    微信图片_20260112125041
    微信图片_20260112125037
    微信图片_20260112125037
    微信图片_20260112125033
    微信图片_20260112125033
    微信图片_20260112125028
    微信图片_20260112125028
    微信图片_20260112125025
    微信图片_20260112125025
    微信图片_20260112125020
    微信图片_20260112125020
    微信图片_20260112125016
    微信图片_20260112125016
    微信图片_20260112125012
    微信图片_20260112125012
    微信图片_20260112125008
    微信图片_20260112125008

    Product specification

    Light source

    Source type

    Ultra bright white LED

    Power

    1x100W

    Ballast

    Electronic ballast

    LED life expectancy

    5000Hours

    Feature

    1:Supports RDM address code

    2:Supports motorized focus

    Photometric data

    Lens angle

    15°

    Product details

    微信图片_20260112125345
    微信图片_20260112125345
    微信图片_20260112125341
    微信图片_20260112125341
    微信图片_20260112125337
    微信图片_20260112125337
    微信图片_20260112125333
    微信图片_20260112125333
